Model

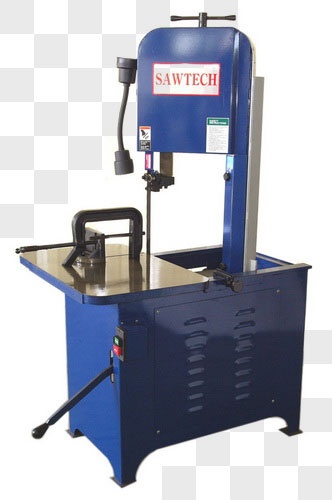

BS-360R

Cutting
capacity-vertical

14-1/2"(368mm)

Max.clearance-table
to guide

14-1/2"(368mm)

Throat deepth

8-3/4"(222mm)

Blade travel into work

8-1/2"(228mm)

Table size

29-1/4" x 18-1/4"(743 x463.5 mm)

Table height

30"(762mm) from Floor

Blade size

19 x 0.9 x 3050 (mm)

Blade speed

70, 140, 270, 540 FPM (21, 42, 84,168 MPM)

Motor

0.75Kw (1HP) -4 Pole

Wheel diameter

14" (355.6 mm )

Packing size ( CRT )

1235 x 765 x 1825 mm ( L x W x H )

N.W / G.W

340 kgs / 380 kgs

Container loads

11 units / 20'   24 units / 40'


FEATURES


Right hand side Push Button Switch for quick and easy
  access

Rear electrical box for easy connection

Stronger cylinder offers smooth and stable cutting quality

Working Table made by Quality cast iron with Anneal and
  percision ground

Alloy Steel Saw Blade increases the cutting accuracy and
  shortens the cutting time


Built-in steel brush system for cleaning chips



STANDARD ACCESSORIES



One saw belt ( installed on the machine )



Halogen working lamp



Working piece clamping device


Electrical Motor

Adjusting tools and tool box , 1 set
